Power Rogowski Coil Current Transformer Measuring Protected 10A - 30kA

Name: Power Rogowski Coil Current Transformer Measuring Protected 10A 30kA
Brand: CY-Group
Price: 1 USD

China Power Rogowski Coil Current Transformer Measuring Protected 10A - 30kA wholesale

Brand Name : CY-Group

Model Number : CY-RCTD03

Certification : KEMA CE ISO SGS TUV UC3

Place of Origin : China

MOQ : 1pcs

Price : NEGOTIABLE

Payment Terms : L/C, TT,D/A,D/P

Supply Ability : 3600000pcs/year

Delivery Time : 3-8 days

Packaging Details : Plymood

Material : Epoxy Resin

Current Range : 10A-30kA

Frequency : 25Hz-20kHz

Maximum output : 3.0 V AC max (customizable)

Accuracy : ±1%(10%-100%In)@45-65Hz

Phase error : ±1%(10%-100%In)@45-65Hz, ±10º@20kHz

Linearity : ±0.2%(10%-100%In)

Position Sensitivity : ±1.0%(90º-270º), ±2%(0,45º,315º)

Contact Now

Power Rogowski Coil Current Transformer Measuring Protected 10A - 30kA

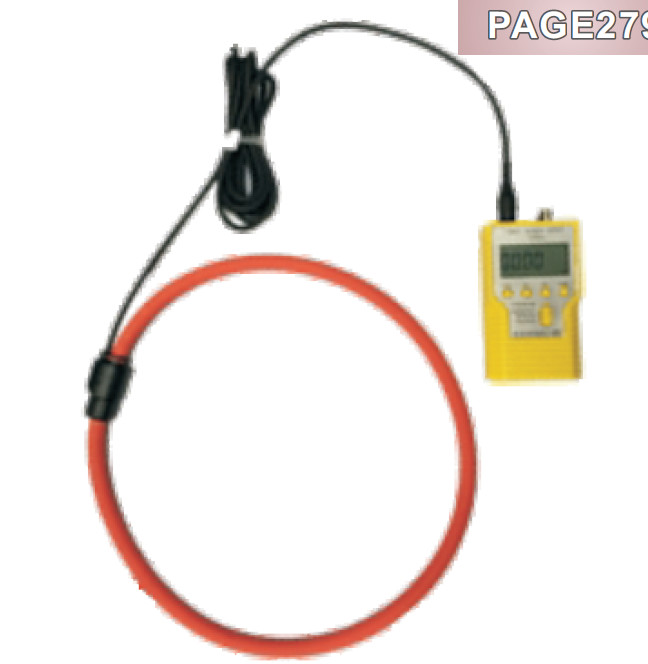

The”RCTD03 lamp Clamp-on Flexible Rogowski coil current transformer” is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. It includes a flexible Rogowski coil probe and electronic modules with a display . The signal from the coil probe can be amplified by the electronic modules through the integration processing .The output signal can be directly used in oscilloscope, digital multimeter or data logger recording instrument.

Feature:

. Display LCD measured parameters

. Flexible and light weights appearance

. Easy & quick installation in tight spaces

. Excellent linearity

. Maximum measuring current up to 130A

Applicaition:

. Power quality monitoring .Power instrument meter .Smart logger .Energy sub-meters .Distributed measurement systems

General data:

.Ambient operating temp:-10ºC-60 ºC(14-140 ºF)

. Ambient storage temp:-25ºC-75 ºC(13-167 ºF)

.Operating environment: Indoor , altitude up to 2000 meters

.Standards Safety:IE 61010-1:2001,600V CATⅢ

Power Rogowski Coil Current Transformer Measuring Protected 10A - 30kA
